    H003 - Magnet-Sensor-Kit

  • Description

    For a more accurate distance measurement I recommend you to purchase my Magnet Sensor Kit. As you can see from the pictures (see application example), a magnet signal transmitter is mounted on the inside of the rim and the magnet signal receiver is placed on the wheel suspension. To be able to process the signals the cable connector (D) is plugged e.g. at input 2 of the product H012.

  • Hardware

    The product can be connected to the following devices. For more information click on one of the following links.

  • Details
    • (A) 2 magnets with double-sided adhesive pads
    • (B) Sensor
    • (C) Bracket
    • (D) Cable Plug
    • (E) 5 m Extension Cable

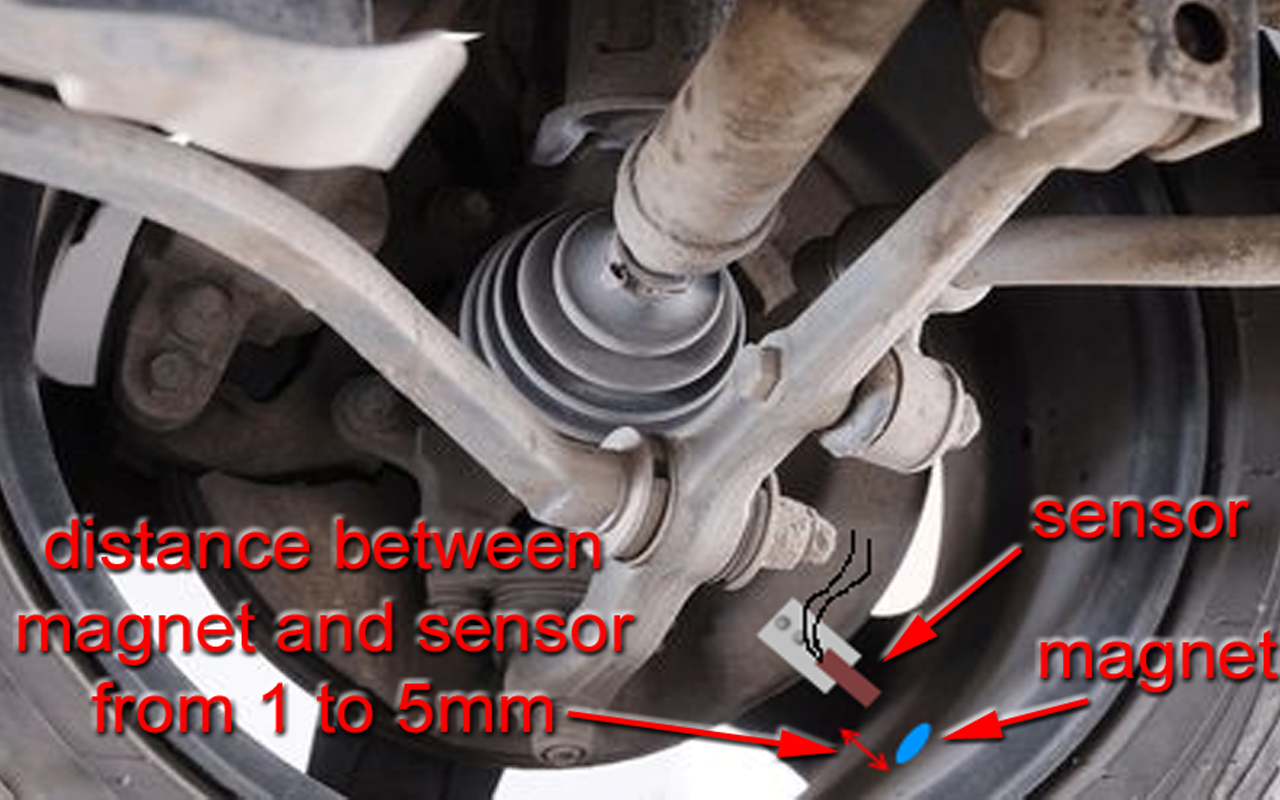

  • Application
  • Hint

    It is recommended that only one magnet be attached to the rim. Since the magnet can usually only be glued, there is a risk that a magnet can be lost when using several magnets. This leads to measurement errors because the software is not able to detect the loss of a magnet.

  • Price

    57.72 €*

* Plus shipping

** Not included in the Scope of Delivery
